PVC Building Wire for House Wiring | 10mm² BV Cable Supply

We supply 10mm² single-core copper BV building wire under 60227 IEC 01, 450/750V, with PVC insulation for fixed house wiring. It is made for air-conditioner feeders, instant-water-heater circuits, EV charger branches, sub-panels and rewiring projects that need stable current carrying and easy conduit installation.

1. What 10mm² BV building wire actually is

10mm² BV is a single-core, unsheathed copper wire with PVC insulation. In international tenders it is often referenced as 60227 IEC 01 for solid conductor version, or equivalent to H07V-U when the conductor is Class 1 solid and H07V-R when Class 2 stranded. For house wiring, solid BV is preferred in conduit, trunking and flush wall installation because it holds shape, terminates cleanly on breakers and is easier to label by circuit.

Our 10mm² BV is built for fixed installation only. It is not flexible appliance cord, not armoured cable and not for continuous flexing. If the run involves frequent bending, panel internal wiring in tight spaces or portable equipment, BVR/H07V-K flexible strand is a better choice.

2. Technical parameters for 10mm² BV

For 60227 IEC 01 / GB/T 5023.3 fixed wiring, 450/750V, single core, PVC insulated, copper conductor:

• Nominal cross-section: 10mm²

• Conductor type: Class 1 solid as standard; Class 2 stranded available for special winding/termination requests

• Conductor construction reference: 1×3.58mm solid, or 7×1.35mm stranded for Class 2 versions

• Insulation: PVC compound, 70°C grade as standard

• Nominal insulation thickness: 1.0mm

• Approximate overall diameter: 5.6–6.7mm depending on solid/stranded and extrusion tolerance

• Rated voltage U₀/U: 450/750V

• Maximum DC resistance at 20°C: 1.83Ω/km

• Minimum insulation resistance at 70°C: around 0.0065MΩ·km

• Long-term operating temperature: up to 70°C

• Short-circuit conductor temperature: up to 160°C for maximum 5 seconds, subject to starting temperature and protective device setting

• Installation ambient: normally above 0°C for PVC 70°C grade; lower-temperature PVC compound can be discussed for cold sites

• Bending radius: for single-core rigid wire, follow approximately 4×outer diameter for fixed conduit layout and larger radius for manual pulling; flexible versions use bigger radii

• Standards: IEC 60227-1/60227-3, 60228 conductor class, GB/T 5023.3; CE/CCC/ISO/ROHS options depending on destination approval

• Flame behaviour: standard PVC can be supplied to IEC 60332-1; flame-retardant, low-smoke or LSZH variants are separate quotations, not standard BV.

3. Where 10mm² BV is used in residential projects

Buyers often ask whether 10mm² is “too big” for homes. It is not if the circuit serves high inrush or continuous load. Typical house applications:

• Large split AC, central AC feeder branches and outdoor unit power

• Instant electric water heater, 8kW–11kW models on dedicated 220/230V or split-phase design per local code

• Electric oven, induction cooktop feeder when the appliance schedule exceeds 2.5/4mm² capacity

• Garage EV charger branch circuit, subject to national wiring rules and breaker sizing

• Sub-distribution inside villa, townhouse or annex where panel-to-panel distance is long and voltage drop must be controlled

• Underfloor heating zone feeder, storage water boiler, sauna heater and workshop compressor in residential annex

• Replacement wiring in old buildings where original 6mm² runs are undersized for modern load

For lighting and normal socket outlets, 10mm² is oversized. Most homes use 1.5mm² lighting, 2.5mm² sockets, 4mm² kitchen/ac minor feeder and 6mm² water-heater/ac feeder. 10mm² is the “heavy branch” size, not the whole-house general wire.

4. Current capacity and practical sizing notes

Published ampacity varies by installation method, ambient temperature, grouping, conduit fill and local correction factors. As a planning reference only, 10mm² copper PVC 70°C single-core in free air or conduit is commonly estimated in the 50A–70A band under favourable conditions; installed in bundled conduits, enclosed trunks or high ambient rooms the usable current is lower. We do not quote a single “max amps” number because it would mislead specifiers.

For quotation and site design, we recommend customers provide:

• Single-phase 220/230V or three-phase 380/400V system

• Load kW or expected full-load current

• Installation method: conduit, trunking, buried, surface, bundled or single run

• Ambient temperature and route length

• Breaker rating and discrimination requirement

• Allowable voltage drop, usually 3%–5% for final circuit depending on local code

We then propose 6mm², 10mm² or 16mm² with proper derating instead of guessing from a generic table.

5. Price parameters for 10mm² BV

PVC building wire price is copper-driven. Copper usually represents the largest part of production cost, and a copper move changes wire price even when labour and margin stay flat. Indicative reference only, not fixed offer:

• Domestic China reference for 60227 IEC 01 BV 10mm² 450/750V has been observed around RMB 7.0–7.5/m for certain quoted stock/contract lots, tax and freight terms varying by seller.

• Overseas retail for H07V-U 10mm² 100m coil has been listed around EUR 198/coil and USD 223/100m depending on colour, certification and country, which is not comparable to ex-factory B2B price.

• B2B export indication for standard PVC insulated copper building wire at 10mm² often falls in about USD 2.00–2.80/m for standard 450/750V PVC, solid or stranded, before certification, packaging and freight; special LSZH, UV-stabilised, flame-retardant or custom-colour versions add cost.

• Volume effect: small trial orders under 1,000m are charged at higher unit rate because of rewinding and colour change; 1,000–5,000m usually gets better unit pricing; 10,000m+ projects can be priced with copper-index clause and scheduled roll-over.

• Quotation basis we use: EXW factory, FOB port or CIF destination by agreement; copper adjustment clause pegged to LME/shanghai daily average over the pricing window; PVC grade, inspection, drum/coil length, markings and certificates quoted separately.

Do not compare a EUR 1.98/m retail coil with ex-factory FOB metre directly. Retail includes local warehouse, VAT, small-coil rewinding, marketing and compliance paperwork; ex-factory export price excludes most of these.

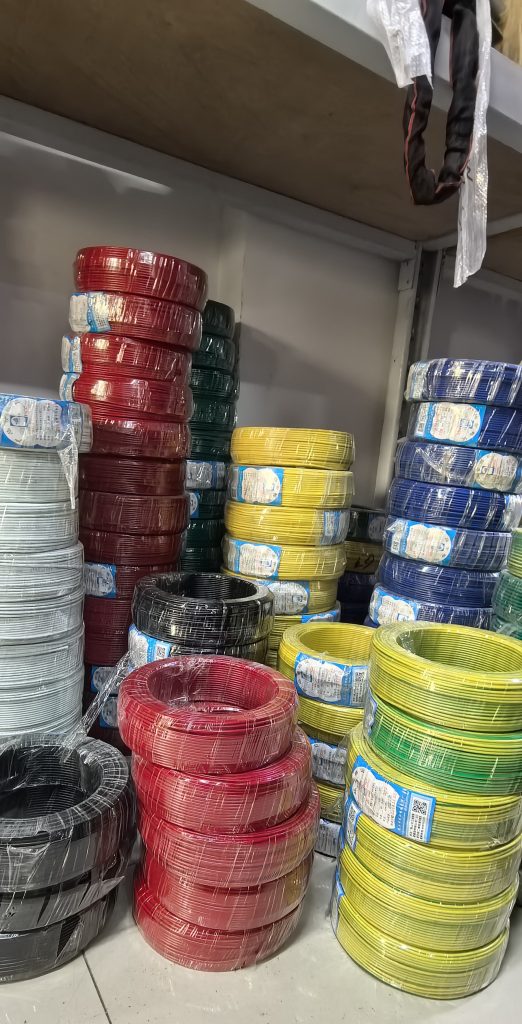

6. Colours, coils and OEM marking

Standard house-wiring colours supplied for export:

• Red / brown: phase or live, depending on destination convention

• Blue / light blue: neutral

• Yellow-green: protective earth only

• Black, yellow, green, white, grey: optional for multi-phase, control identification or regional preference

• Custom RAL or project colour codes available with MOQ per colour

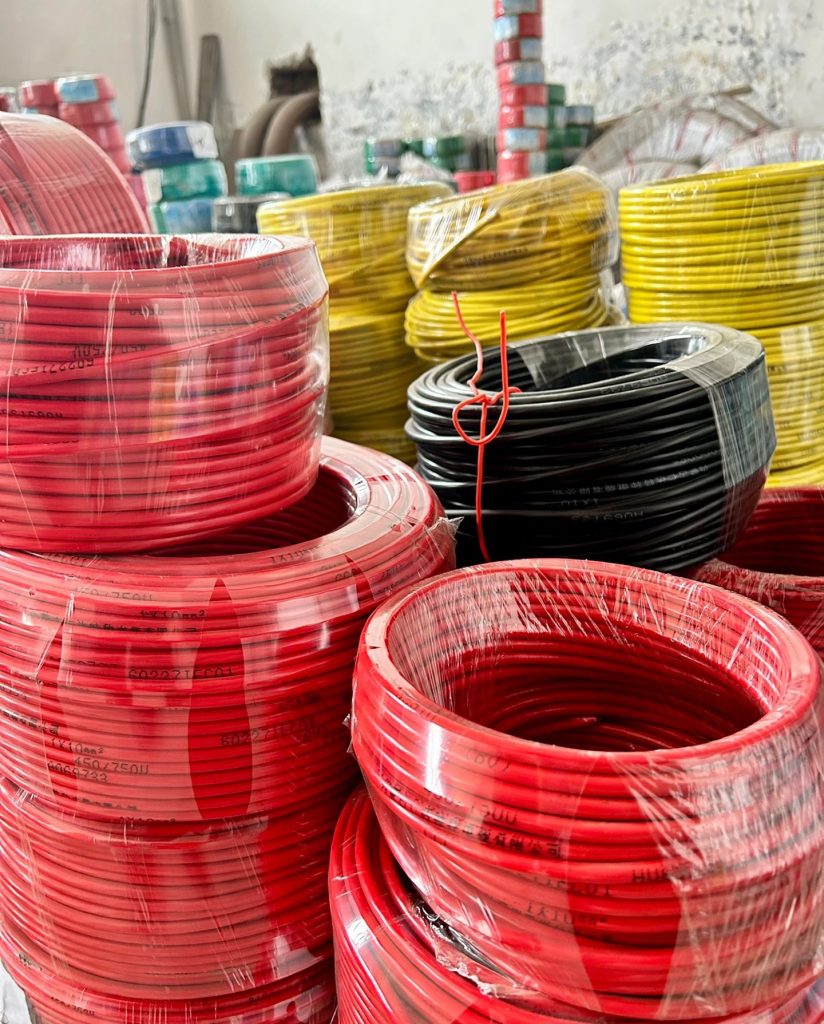

Packing options:

• 100m coil as standard for distributor resale

• 200m coil for contractor use

• 500m wooden drum or plastic reel for project bulk

• 100-yard coil for markets using imperial procurement language

• Full-length drum with sequential metre marking for tender projects

Printing on insulation can include BV, 60227 IEC 01, 450/750V, mm², standard, batch number, year and customer brand. OEM private-label and neutral-print options are available without mentioning any third-party manufacturer name.

7. Quality control in production

Every 10mm² BV order is handled as fixed-wiring material, not general wire. Our routine checks include:

• Copper conductor diameter and resistance verification before insulation

• Online spark test on PVC insulation to detect pinholes

• Diameter and insulation thickness monitoring to keep 1.0mm nominal and overall OD in tolerance

• Continuity and DC resistance test per IEC 60228/60227 limits, 1.83Ω/km max at 20°C for 10mm²

• Insulation tensile, ageing and heat-shock tests based on ordered PVC compound grade

• Flame test when flame-retardant option is specified, usually IEC 60332-1 for single cable

• Packing inspection for coil length, drum protection, humidity exposure and export labelling

Customers buying for residential resale should request test report template in advance; we issue mill test certificate per lot rather than generic marketing claims.

8. FAQ

Q1. Is 10mm² BV enough for a home EV charger?

It can be, but only after load and code check. For a 7kW single-phase 230V charger, current is around 30A plus derating; 10mm² may be suitable in short, well-ventilated conduit, while long runs or higher power may need 16mm². Three-phase 11kW/22kW designs need separate phase and neutral calculation. We quote after charger spec, route length and local breaker rule.

Q2. What is the difference between BV 10mm², BVR 10mm² and H07V-U/R/K?

BV is rigid single-core, usually solid Class 1, for fixed conduit and wall wiring. BVR is flexible stranded, easier inside panels and tight bends. H07V-U is the European rigid solid equivalent, H07V-R stranded rigid, H07V-K flexible; all can be 450/750V PVC but differ in conductor class and bending use. For house conduit, BV/H07V-U solid is most common; for panel jumpers, BVR/H07V-K is easier.

Q3. Can 10mm² BV be buried directly underground?

Standard unsheathed BV is not for direct burial. Use conduit, trunking or transitional armoured/protected cable outside. For garden subfeed or underground garage inflow, we recommend conduit with BV inside or a separate underground-rated PVC/SWA design. Direct soil contact will damage plain PVC insulation and create compliance issues.

Q4. How much does 10mm² BV cost per metre for import?

Indicative export pricing for standard copper PVC 450/750V often starts around USD 2.00–2.80/m, but final FOB/CIF depends on copper index, solid vs stranded, colour count, certification, coil length and quantity. Send required metres per colour and destination port for a working quotation.

Q5. What certifications can you provide for house wiring export?

Standard documents include factory ISO, product test report to IEC 60227/60228, and optional CE, CCC, ROHS, VDE/HD or local approval depending on target market. For EU residential resale, H07V-U with HD 21 marking and CE declaration is common; for Middle East/Africa, IEC 60227 with project inspection is usually acceptable. We do not claim approvals not tested for the exact construction.

Q6. What is the minimum order quantity?

For standard 10mm² BV in stock colours, MOQ can start from 1,000m per colour/size combination. Mixed-size container is possible, for example 1.5/2.5/4/6/10mm² in one shipment. New colour, special print or LSZH compound normally carries higher MOQ because of extrusion setup and rewinding.

Q7. How long is production and delivery?

Stock coil colours usually ship in 7–15 days for small orders. Fresh production of 10mm² BV in multiple colours is commonly 15–30 days; certified or LSZH versions may take longer because of compound procurement and third-party testing. Container shipments add sea transit according to destination port.

Q8. Can I get samples before bulk order?

Yes. Sample length 1–5m per colour/size can be supplied for technical check; sample cost is usually low, but express freight is charged to the buyer. For exact 60227 IEC 01 print and certified construction, request the matching sample rather than a similar size, because 6mm² and 10mm² handling feel different in conduit.

Q9. How do I avoid voltage drop on long 10mm² runs?

Use shorter panel distance, larger cross-section such as 16mm², or separate subpanel instead of very long 10mm². Voltage drop depends on current, route length, phase system and conductor temperature; send metre distance and load kW, we calculate expected drop and recommend size.

Q10. Is solid 10mm² hard to pull through conduit?

More stiff than 2.5/4mm², but manageable with correct conduit size, fishing tape and no sharp bends. If the route has many elbows or panel space is tight, Class 2 stranded 10mm²/H07V-R is easier, though termination must be done properly to avoid strand fan-out. For pure fixed house wall conduit, solid BV remains the cheaper default.
